PC32002

PC32002 采用 DMP Vortex86DX 处理器，x86 架构 核心，支持传统的 ISA 总线和 PCI 总线，能够为工业 控制领域嵌入式设备的升级替换带来最佳解决方案。 PC32002 板载最大 1GB DDR2 内存，板载最大 16GB SSD，整板具有良好的抗冲击振动能力。 PC32002 整板功耗只有 3-5.5W，视外挂显示或 USB 设备而定，工作主频从 600MHz/800MHz 可由凌昊 智能®在出厂时设定。超低的功耗使得 PC32002 可以 轻松工作于环境温度比较高的场合而无需采取额外的 散热措施。 PC32002 支持 4 路 USB 2.0，1 路 SATA 接口，1 路 10/100Mbps 以太网接口，4 路 RS232/485/422 串 口，1 路 PS/2 键盘和鼠标接口，1 路 CRT、LVDS 输 出接口， 音频接口等。 所有这些接口保证了 PC32002 既能够兼容传统基于 ISA/PCI 总线的设 备，又能够兼容客户对当前主流外设的选型要求。

应用领域：

轨道交通，工业自动化，电力，机载控制设备，车载 控制设备等等

产品特点：

>> DMP Vortex86DX处理器
>> 板载内存最大1GB DDR2 RAM
>> 支持 1 个CRT 接口，1 路LVDS
>> 板载最大16GB SSD

>> 支持原生 PCI/ISA 总线

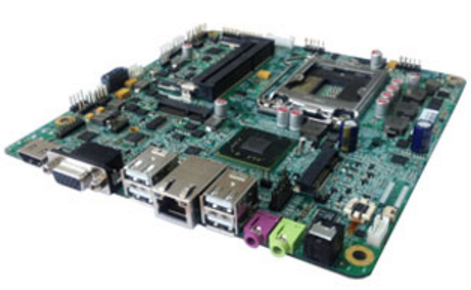

SC52101

SC52101 is a motherboard for intel desktop B75 chipset. With the Intel® B75 Express Chipset and 3rd generation Intel® Core™ processor family, the user can easily schedule the PC to power and perform security scans and data backups. It can be used for all in one applications, simplify and compress the cost and Product Cycle.

产品特点：

>> MiniITX 170mmx170mm
>> DC19V/12V Power Supply
>> DDR3, 2 Sodimms
>> Support Intel® HD Graphics
>> Support USB3.0
>> Support Half MiniPCIE & Full MiniSATA
>> Support VGA/HDMI/LVDS outputs

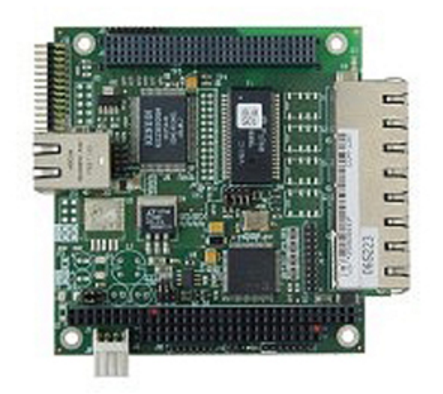

PC38002

The PC38002 is a versatile 10/100Mbps five-port Ethernet switch that can function in 10BaseT or 100BaseTX modes and allow connections made through onboard RJ-45 connectors. The PC38002 can be used as a standalone module or integrated within a PC/104 or PC/104-Plus system together with a Eurotech CPU module.
Cross-over connection
The PC38002 can optionally feature a cross-over connection between Ethernet ports 2 and 3 that can be activated via software, automatically activated when the board is powered off, or activated when a Watchdog signal is received from the host Eurotech CPU module.

产品特点：

>> 5x Fast Ethernet ports
>> PC/104-Plus compliant
>> 64KB SRAM frame buffer
>> QoS for DiffServ priority

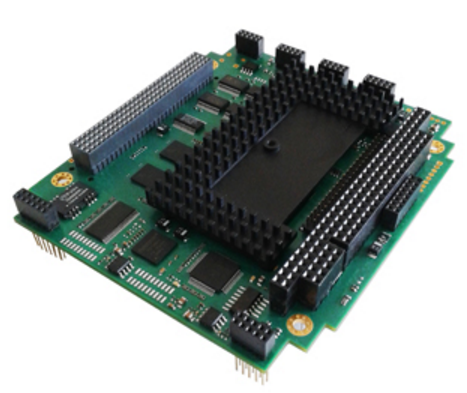

PC38001

This small form factor Layer 2 switch features an onboard microprocessor for local/remote control and monitoring, Quality of Service (QoS) traffic prioritization, Virtual Local-Area Network (VLAN) trunking, as well as support for Telnet remote management and Rapid Spanning Tree (RSP) redundancy.
Designed for robust performance under high shock/vibe and thermal conditions in space-constrained military / civil applications, the PC38001 serves as an ideal Commercial-Off-the-Shelf (COTS) solution to enhance situational awareness and IP network centricity. The product is available as a standalone board or integrated into a military-hardened enclosed switch subsystem (DuraNET 1268) or mobile router subsystem (DuraMAR 5915). No additional processor is required to operate the board, and power can be drawn through either the ISA/PCI buses or 2-pin Molex connector (for non-PC104 systems).
The PC38001 is designed with extended temperature components and comes with thermal heatsink plates to simplify systems integration and conductive cooling. A rugged, impedance-matched backplane-style connector brings out high-speed Gigabit Ethernet signals, along with an RS-232 serial console for CLI management, status LEDs, and zeroization. An out-of-band 10/100 Ethernet port is also available for Web GUI management of port settings. Up to four of the board’s switch ports can support fiber optic connections. If additional port density is desired, any of the GigE ports can serve as a link for cascading multiple switch modules, while an onboard infrared interface supports recognition and management of two stacked PC38001 boards under the same console interface.

>> Ethernet: 10x 10/100/1000Mps Ethernet (up to 4 selectable for fiber)
>> Auto-MDI/MDIX
>> Auto-Negotiation
>> Speed Auto-Sensing
>> Up to 4096 Active Virtual local-Area networks

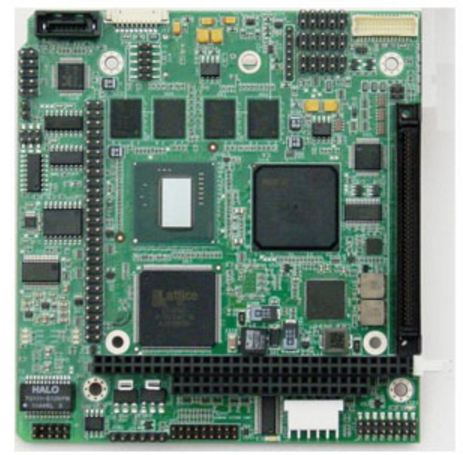

PC20001

Highly Integrated SBC
Athena III combines all of the functionality of a single board computer with a complete analog and digital data acquisition circuit into a single board, offering the most functionality available in a small, compact form factor. Athena III is also a viable migration path for Athena II customers.

Price/Performance Advantage
The 1GHz Intel Atom E640T CPU offers an excellent balance of performance, power consumption and price, making Athena III an ideal choice for a wide variety of embedded computing applications.

Rugged Design
Athena III was designed with rugged applications in mind. From an operating temperature of -40°C to +85°C, to its soldered DRAM, Athena III thrives in the most extreme environments.

Fully Integrated Systems
Athena III is available as a complete system with your choice of operating system in a specially designed enclosure that eliminates all cable and provides a rugged, compact, wide-temperature box PC ready for application download and deployment.

Data Acquisition
Athena III’s integrated data acquisition circuit includes 16 analog inputs with 16-bit A/D and 150KHz maximum sample rate, four 12-bit analog outputs, 24 digital I/O lines, and two counter/timers. It uses an enhanced 512-sample FIFO with programmable threshold for maximum flexibility and data reliability.
The analog circuitry utilizes Diamond Systems’ industry-leading autocalibration technology to calibrate its A/D and D/A circuits. This means you get analog I/O performance with the maximum possible accuracy over the full operating temperature range of the product.

Software Support

Athena III runs Linux, Windows Embedded Standard 7, Windows Embedded CE, and QNX. A Linux Software Development Kit is available with bootable images and drivers to get you started on your design project right out of the box. Diamond’s free industry-leading Universal Driver software is also included. It provides a C programming library for the integrated data acquisition circuit, demo programs, and example code to assist in rapid application development.

Development Kit
Complete Development Kits, DK-ATHE600A-01 & DK-ATHE1000A-01, are available with all the components you need to get started on your embedded design project. The kit contains an Athena III SBC, flashdisk with Linux pre-loaded, cable kit, AC adapter, and software CD.

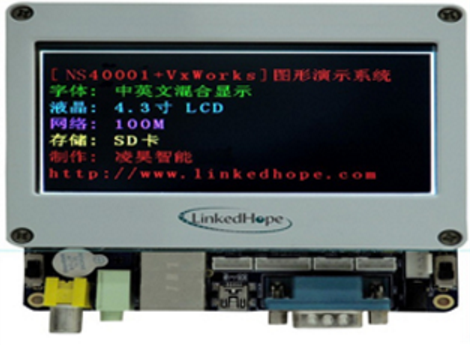

NS40001

NS40001是一款低功耗高性能的ARM11单板计算机，专门设计用于多媒体播放，手持设备，工业控制，汽车电子，导航系统等领域，该单板计算机采用三星S3C6410作为主处理器，布局合理，接口丰富，多操作系统支持。

NS40001具有双LCD接口、4线电阻触摸屏接口、百兆以太网接口、标准DB9五线串口、Mini USB 2.0-OTG接口、USB Host 1.1、3.5mm音频输出口、在板麦克风、标准TV-OUT接口、弹出式SD卡座、红外接收等常用接口；另外NS40001还引出4路TTL串口、CMOS Camera接口、40pin总线接口、30pin GPIO接口(可复用为SPI、I2C、中断等，另含3路ADC、1路DAC)、SDIO2接口(可接SD WiFi)、10pin Jtag接口等；板载的还有蜂鸣器、I2C-EEPROM、备份电池、AD可调电阻、8按键(可引出)、4LED；

在部署实时操作系统VxWorks后，NS40001将为行业客户提供一种低功耗、实时显控的完美解决方案。

产品特点：

>> 支持VxWorks操作系统
>> 支持WindML
>> 宽温可选

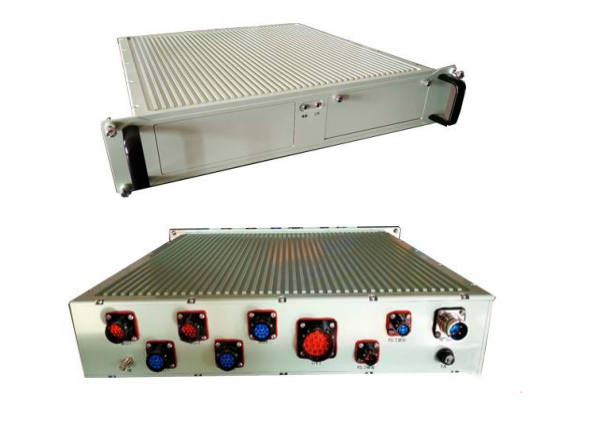

NS4R201

NS4R201是2U导冷加固单板计算机整机。机箱设计为19英寸标准上架尺寸，采用全加固密闭导冷结构设计，具有良好的抗震性能及优越的散热性能，能够稳定运行在恶劣的冲击振动环境中。NS4R201内部采用了模块化设计理念，整机易于维修维护，可大大降低用户后期使用维护成本。

NS4R201内置一块三代i7处理器板卡，2.5英寸固态硬盘，导冷电源模块。对外输出设计有航插接口和通用USB调试接口，可以满足实验室和车载环境的使用要求。整机结构设计上在确保稳固的同时尽量减少整机重量，方便整机上架安装或运输。

NS4R201整机选用了高等级电磁屏蔽材料、低功耗版本处理器核心，使得整机可以实现整体全密闭，内部实现无风设计，可工作于恶劣的温湿度，振动及电磁环境中，为用户现场任务顺利执行提供了有力保障。

适用领域：

数据采集，数据存储，运算控制单元以及视频处理，软件无线电等

产品特点：

>>标准19英寸2U加固机设计尺寸

>>基于Intel Ivy Bridge平台开发设计

>>整机全密闭导冷设计

>>后出航插连接器

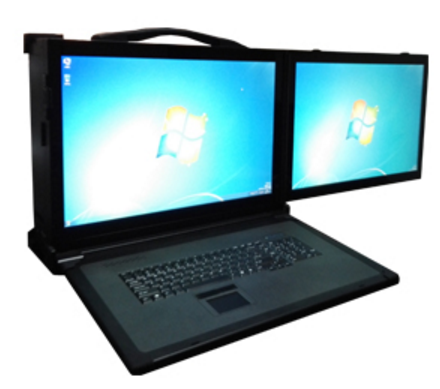

NS4P221

NS4P221是一款创新性设计的便携计算机产品，该产品具有可左右翻转的两个21.5英寸1080p高清液晶屏幕，最大开合角度为180°，两个屏幕可以支持显示相同或不同的内容。

内部采用高可靠计算机主板，默认配置为Intel®第四代Core i5 4300U高性能低功耗处理器，CPU功耗15W，可选无风扇散热结构。具有良好的抗震性能及优越的散热性能，可满足实验室、野外复杂环境的使用要求。

外部采用铝合金框架配合镁铝合金材料，具有轻便坚固的结构特点。

NS4P221采用性能强劲、稳定性高、可选宽温工作的主控板，可提供高达1920×1080分辨率的显示输出，具有串口、千兆以太网、USB等多种接口输出，可完全满足各种功能要求。该系统还可扩展一块可拆卸式电子盘，该电子盘单独封装并且与数据处理单元采用高可靠性的接口对接，具有软件自毁功能，大大的增强了整机系统的安全性和可靠性。

NS4P221采用高可靠便携形式设计，支持Windows XP、Windows7、Linux、VxWorks等操作系统，采用模块化设计方法，具有良好的性能及优越的便携性，可满足恶劣环境下对多屏幕显示便携计算的要求。

产品特点：

>> 两屏显示：两个21.5英寸1080p高清液晶屏幕

>> 内置Intel®第4代i7/i5 CPU

>> 稳定的两屏展开固定结构

>> 具有良好的抗震性能及优越的散热性能

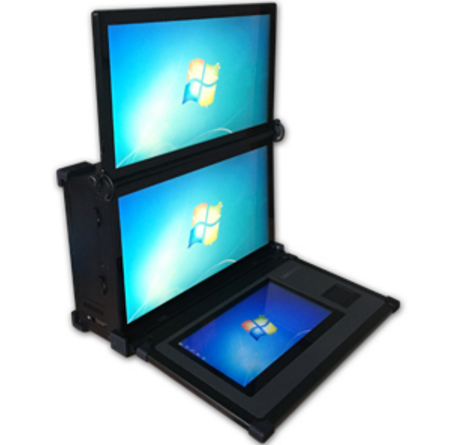

NS4P231

NS4P231是一款三屏便携计算机产品，该产品具有可上下翻转的两个21.5英寸1080p高清液晶显示屏(最大开合角度为180°，带钢化玻璃)，同时具有一个14英寸的触摸液晶显示屏。三个屏幕可以支持显示相同或不同的内容,在画面显示和操作使用上完全满足用户要求。

产品内部采用性能强劲、稳定性高、宽温工作的工业计算机主板，采用Intel®第四代Core i系列高性能处理器。外部采用铝合金框架配合镁铝合金材料，采用全新加固外观、重量减轻的设计，配备静音散热风扇可以安静高效的工作，并在通风散热、防尘防沙、抗震防摔、电磁兼容等方面进行精心设计，以满足用户便携运输以及在不同使用环境、尤其是野外恶劣环境的使用要求。

该便携型显控台采用高可靠计算机主板，可提供三路高达1920*1080分辨率的显示输出，板载2路串口输出，并具有千兆网、USB等其他多种接口输出，支持Windows XP、Windows7、Linux、VxWorks等操作系统，可满足用户对各种操作系统的功能要求。

该系统采用高速固态电子盘，并专门设计成可拆卸式，该电子盘单独封装并且与主控板采用高可靠性的接口对接，可选具有软件自毁功能，大大的增强了整机系统的安全性和可靠性，满足用户在安全保密方面的技术要求。

产品特点：

>> 三屏显示：两个21.5寸主显和一个14寸副显（均带钢化玻璃）

>> 内置Intel®第4代i7/i5 CPU

>> 配备静音散热风扇

>> 稳定的三屏展开固定结构

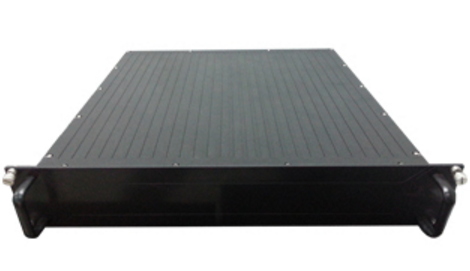

CP42102

CP42102是2U全加固数据处理计算机，整机设计符合PICMG CompactPCI总线架构规范，全加固导冷结构，具有良好的抗震性能及优越的散热性能，能够稳定运行在恶劣的冲击振动环境中。CP42102采用了CompactPCI模块化设计理念，整机易于维修维护，可大大降低用户后期使用成本。
CP42102内置了第3代Intel嵌入式 Core™ i7处理器，性能强劲，支持最大16GB内存，内置最大1TB容量的固态存储单元，可满足大容量信息处理的计算要求与存储要求。除了将网络、USB、串口、VGA显示等常用接口通过航空插头从后部输出；在机箱内部，CPU槽和两个业务槽分别通过一路LVTTL串口实现互通，机箱外部增加两个N50K的射频连接器，以满足用户射频板的外部互联。
CP42102整机选用了高等级电磁屏蔽材料、高能耗比计算核心，整体全密闭且进行了三防处理，可工作于恶劣的温湿度及电磁环境中，为用户现场任务顺利执行提供了有力保障。

适用领域：
轨道交通（车上），应急指挥车，战车，舰船，机载平台，大型机械

产品特点：

>> 采用第3代嵌入式i7处理器
>> 基于6U CompactPCI插卡规范，3槽横插
>> 模块化设计，维修维护方便
