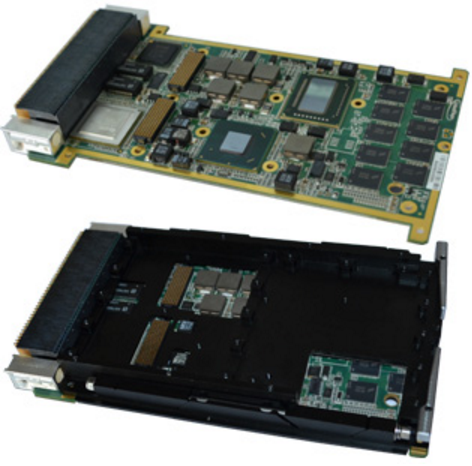

VP32001

VP32001是一款高性能兼容PC的3U VPX 处理器板，支持二代英特尔酷睿处理器和英特尔QM67芯片组，支持多达8 GB的DDR3-1333 ECC SDRAM。VP32001板载有一个的XMC接口和丰富的I/ O接口，包括2个SATA600通道，双1000BASE-BX，RS232/422/485接口和USB接口。该板提供了一个灵活的PCIe总线接口到背板，该接口支持多种配置方式，从8个x1 PCIe端口到一个单一x8 PCIe端口，这样的特性使其既适合用于分布式交换系统也可用于集中式交换系统。对于不同的应用，VP32001提供风冷和导冷两种散热方式。该产品适合应用于工业控制，交通运输，航空航天，安全和国防应用领域。为了简化集成，该板支持多种操作系统。

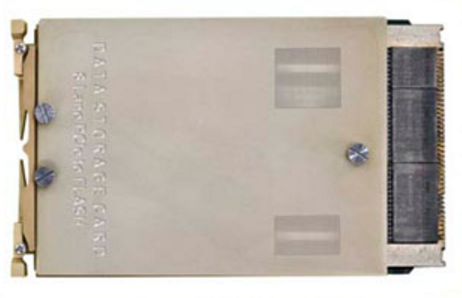

VP39101

Introducing x8 Gen2 8-Lane Flash Storage.
VP39101 is designed to accelerate the storage system by eliminating SATA throughput limitations and connecting to the system via PCIe. The PCIe x8 Gen.2 interface used by the 8 Lane Flash Storage Slot Card supports 4GB/sec bandwidth and is controlled by a Marvell RAID processor.
• Up to 8 TB
• GB NVRAM, 1GB On-board
• SDRAM with ECC
• Internal SATA III 6Gb/s
The card has a purge and declassification option. It is possible to declassify via software.
The 8 Lane Flash Storage Slot Card which houses the memory chips (SSDs) comes in the 3U VPX form factor with a .08” pitch and is VITA 46 and 48 compatible.
This board is available with Amphenol Backplane Systems VITA 46 / 48 compliant VIPER™ VPX connectors. This is an extremely ruggedized 10Gbps connector, securing tomorrow’s most intensive land based, marine and avionics environmental packaging challenges.

产品特点：

>> PCIe to flash RAID
>> RAID 0, 5 or RBOD
>> Bururst wririte: 3.0 GB/sec
>> Bururst read: 3.0 GB /sec
>> Windows®, Linux®, or VxWorks®

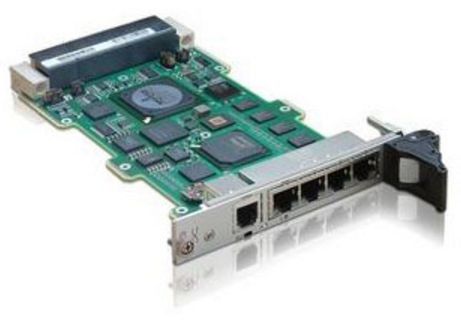

VX3910

High-performance IPv4/IPv6 Gigabit Ethernet Switch for VPX and OpenVPX™ platforms

VX3910 provides 28 Gigabit Ethernet ports and comprehensive management features for extremely rugged 3U system designs. It implements Kontron Embedded Network Technology (same advanced feature set and operational interfaces across multiple form factors) which simplifies IPv4/v6 inter-and intra-platform networking.
The non-blocking fully managed L2/L3 Gigabit Switch provides 20x Gigabit ports to the backplane and four additional 2.5-Gigabit ports to the backplane. The four 1000 Base-T uplinks on the front panel, one dedicated for out-of-band management, expand the range to a total of 28 ports.
VX3910 is available in an air-cooled version (0°C to +55°C) and in rugged conduction-cooled version (-40°C to + 85°C).

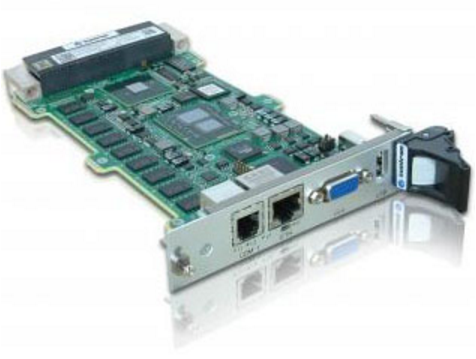

VX3030

3U VPX Intel® Core™ i7 Single Board Computer

VX3030 is a multipurpose 3U VPX rugged single board computer offering the ultimate performance for embedded applications. Coupled with Kontron Long Term Supply policy, this board is poised to become the general purpose small SBC for many generations of embedded applications for the Military and Aerospace market.
Used in Kontron 3U VPX development systems, along with 3U VPX carriers and 3U VPX Ethernet switches, the VX3030 is the ideal candidate for long term programs in search of general purpose or compact high performance parallel computing solutions.

VP00001

VPX 3U Backplane System

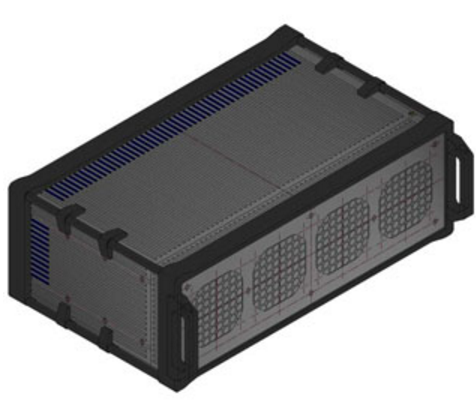

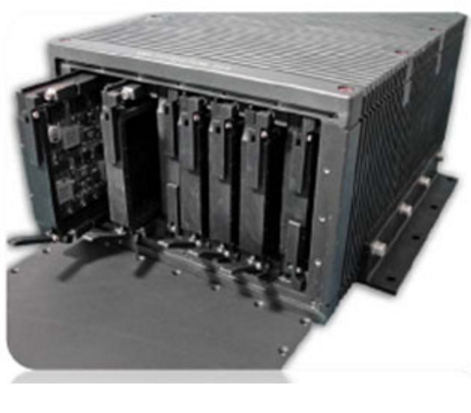

VP41306

The chassis is a OpenVPX COTS product for 3U and can be used for multiple applications by changing the switch on the backplane mezzanine to your needs.
The chassis features 16 slots total. 14 useable VPX slots and 2 power supply slots, one on each side of the chassis. This way the power units can be thermally attached to the sidewall.
Sealed chassis with high density cooling fins on the inner chassis, cooled by forced air from the front to the back. (ATR type cooling and sealing in 3U VPX) The fans are protected by shields.

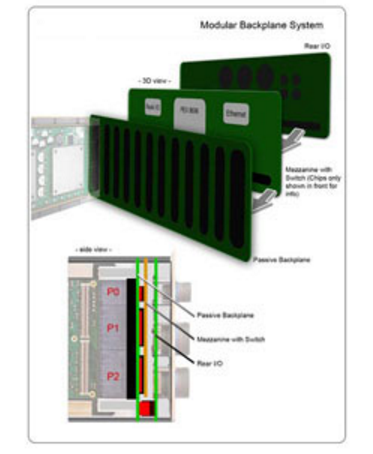

High speed ERNI 10Gig connectors connect the backplane and the mezzanine cards and all active components are conduction cooled. The backplane and the mezzanine cards are held in place using a special rubber type insert, therefore it dampens the backplane/mezzanine assembly against vibrations. The cards do not experience stress on the connectors as it is usually the case in traditional backplanes which are screwed down at different points and apply stress during assembly, during wedgelock screw down and during extended temperature ranges as well as shock and vibration to all parts on those PCBs.
PCIe Gen 2 "noStub" routing is used throughout the system to maximize data throughput. Inter slot high speed communication connections are done on the mezzanine PCB. Also it is possible to use a Gb Ethernet switch and a serial Rapid I/O switch on this mezzanine, if needed.
The rear I/O PCB can be equipped with MIL-C-38999 series 3 connectors.
The chassis is chromatized on all surfaces before applying custom primary and secondary coatings. EMI is therefore minimized and can be further minimized by using SSC in the system.
Repair time is very short because the outside EXOCAGE metal armor is screwed to the chassis and the chassis itself can be opened on top, the backplane assembly is removed and reinserted very quickly, no screws are used.

VP41304

3U和6U的VPX版本可以在背板上实现PCIexpress总线，其中每个槽位有8个PCIE通道，并支持64个通道的交换，所以该版本允许多达3个插槽和高带宽的CPU插槽。该PCI系统的独特的VPX交换解决方案可以轻松定制背板拓扑结构。根据需求，我们可以定制全网状拓扑结构。

VP41302

该VPX版本可实现低延迟的PCIexpress星形拓扑结构，其中每个槽位有8个PCIE通道，并支持64个通道的交换，所以该版本允许多达7个插槽和高带宽的CPU插槽。该独特的VPX交换解决方案，可轻松定制背板拓扑结构。根据需求，我们可以定制全网状拓扑结构。
标准固导冷却电源模块可提供电能高达至250瓦，电源输入要求14 - 36VDC（28VDC标称值）。+ /-12V，+5 V和+3.3 V的输出电压是符合规范的。

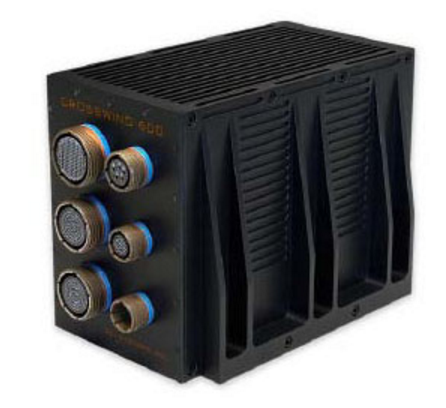

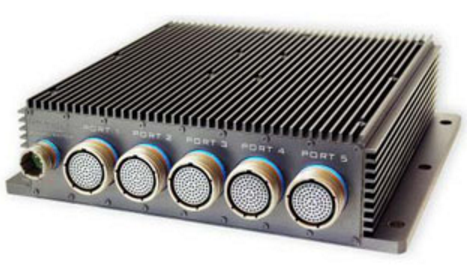

VP41301

该机箱是一款3U的OpenVPX 货架产品，通过改变夹层背板可满足多种应用场合的需求。该系统采用万兆高速连接器连接底板和夹层卡，所有的插卡都是可导冷的。背板和夹层卡被安置在使用一种特殊的橡胶型插入方式，可以有效缓解振动。与传统背板上的连接器受到的压力不同的是，在从不同位置装配拧紧时，在使用锁紧条锁紧时，在扩展温度范围以及冲击震荡工作环境时，这种背板上的连接器都不受力。GEN 2 PCIe noStub“路由应用在整个系统，以最大限度地提高数据吞吐量。槽间的高速通讯连接通过中层的PCB来实现。如果需要的话，这个夹层还可以实现一个千兆以太网交换和一个串行Rapid I / O交换。这个夹层卡上还集成了GPS模块，WiFi模块，温度和湿度的传感器和3D震动传感器IC。可以通过一个I2C总线读取数据，这个12C总线可连接到所有槽位，其中每一个槽位都是符合VITA规范的。
后I / O PCB可直连到 MIL-C-38999系列连接器上。我们提供各种标准I / O引脚配置。
机箱的表面在进行一道和二道的涂漆之前都已经铬化了。因此，EMI最小，另外通过在系统中使用SSC，能够进一步降低EMI。
铝质，以最小的重量保证其最大限度的坚固耐用。
内部采用锁紧固定， 以确良好的热传导到机箱壁。
背板，夹层和后I / O PCB都是夹紧固定在机壳以缓冲振动。

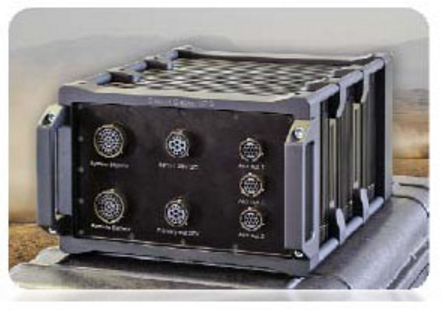

VP41305

The PCI Systems DesertGecko UPS 1000 combines the latest uninterruptible Power Supply developments in UPS power and Lithium iron phosphate(Li‐FePO4) battery technology. It delivers more than 650 watts of uninterrupted power for deployed and mobile systems—having the smallest footprint in the industry today and is available in a 1/2 ATR size and horizontal radio type mount.
